Micro Invertor, Products

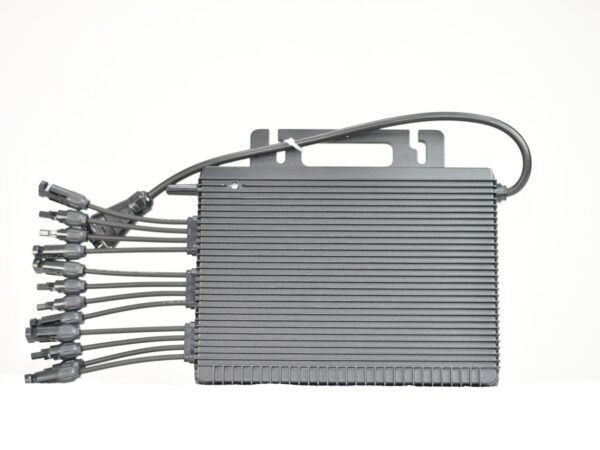

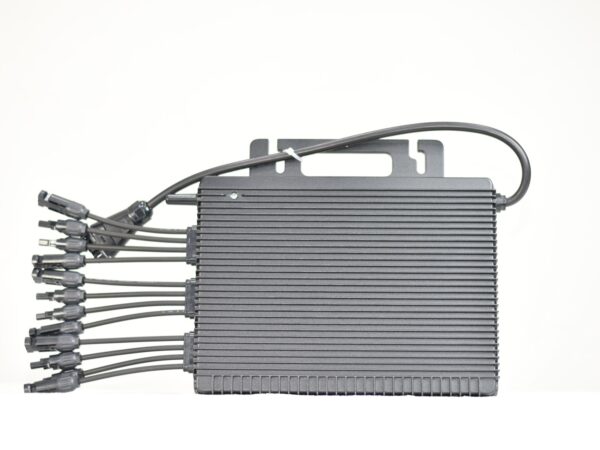

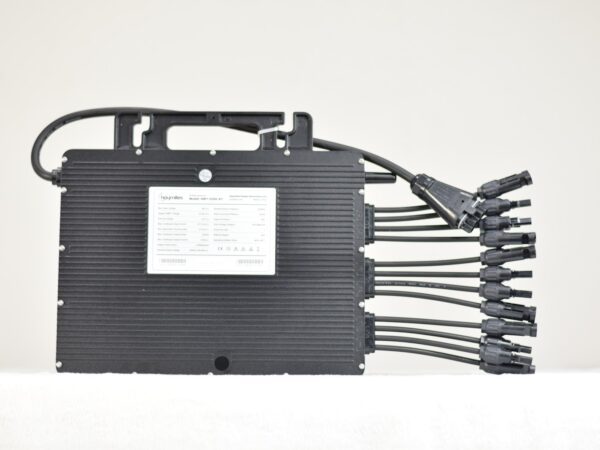

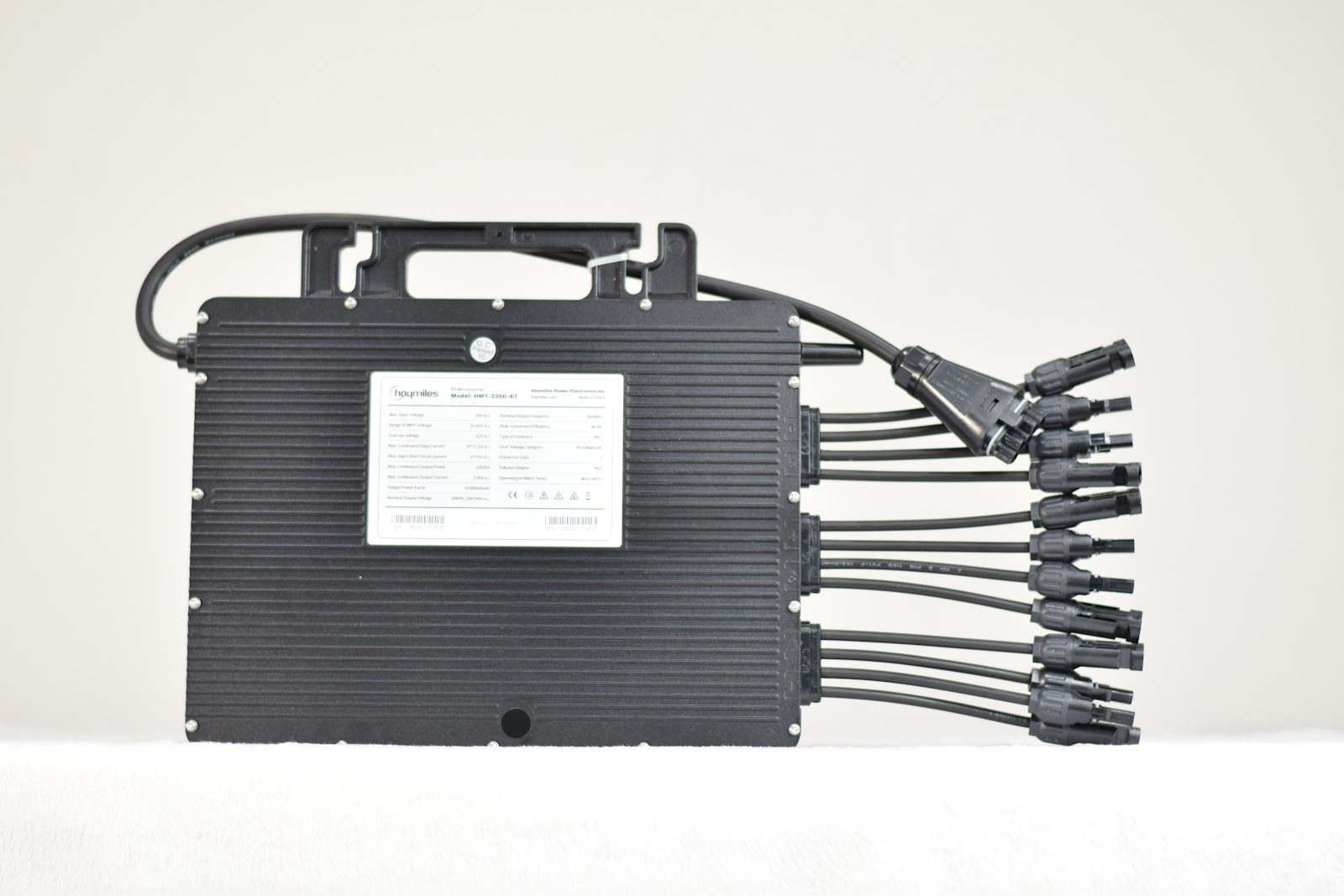

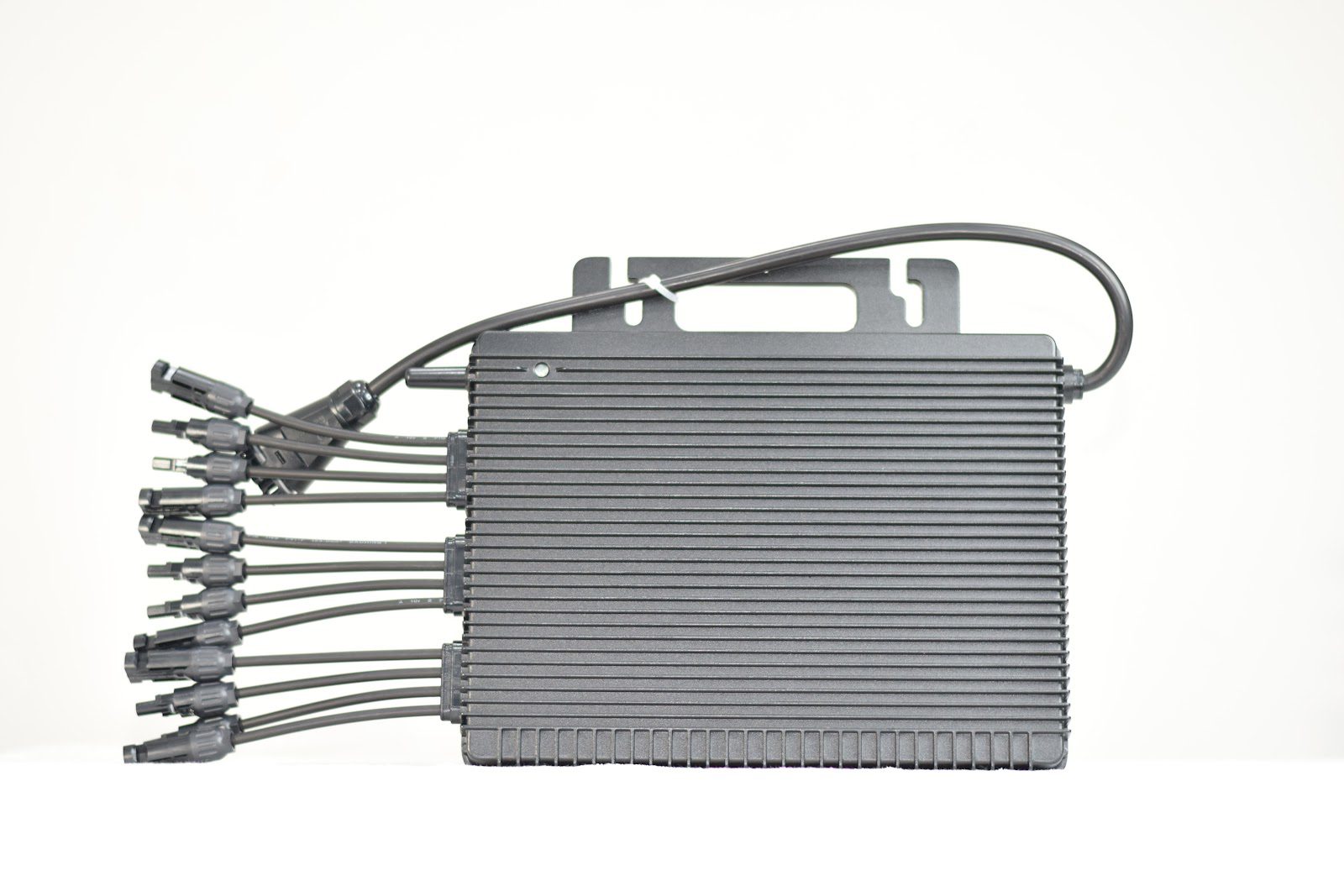

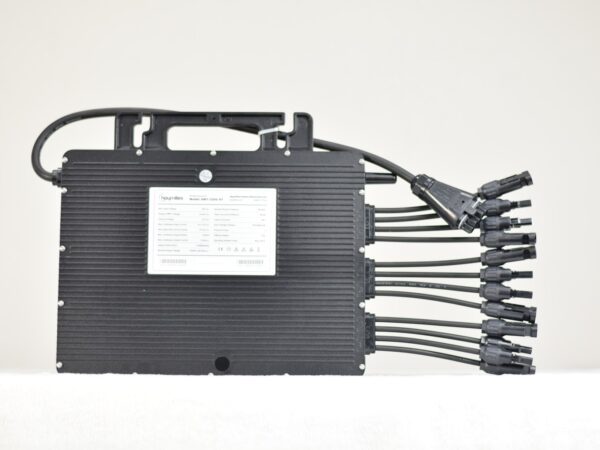

HMT-2250-6T
The world’s first three-phase microinverter with Reactive
Power Control, can be widely used in the general 230 V/400 V
three-phase electric power distribution.
Dimensions: 330 × 250 × 37mm
Rated output power: 2250VA
Commonly used module power: 300W to 505W+
Max. input current: 4 × 20A
Max. input voltage: 60V
Grid type: Three Phase MPPT
voltage range: 16V–60V
Features
Three-phase output, more suitable for commercial and industrial applications.
– Up to 2250 VA output, adapted to mainstream high-powered PV modules.
– Each microinverter supports up to 6 modules, faster installation and lower cost
– With Reactive Power Control, compliant with EN 50549-1: 2019, VDE-AR-N 4105: 2018, TOR Erzeuger: 2019-12, etc.
– Sub-1G wireless solution enables the stable communication for commercial and industrial stations
Warranty
– 12 Years
Compatibility
DTU-Pro-S
